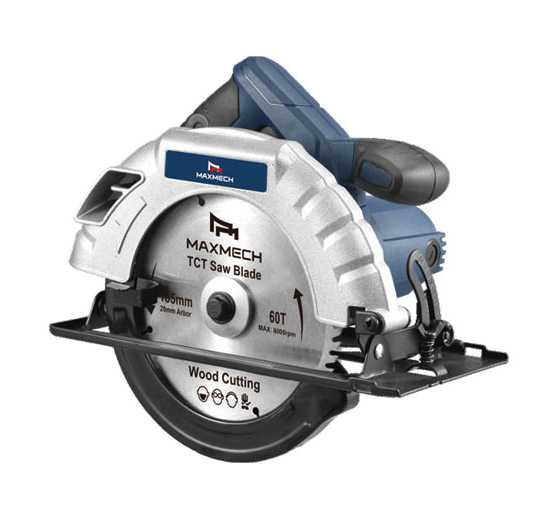

Maxmech Circular Saw CS 1400-185 185mm blade 1400w
KSh 6,500.00
Key Features & Mechanical Design
-
1400W High-Torque Motor: Provides sufficient power to push through dense hardwoods (like mahogany or oak) without significant RPM drop or binding.
-
Bevel & Depth Quick-Adjust: Lever-lock mechanisms on the base plate allow fast angle adjustment up to 45° and precise control over blade penetration depth.
-
Heavy-Duty Stamped Base Plate: Steel or aluminum shoe base maintains stability across straight rips and crosscuts while resisting bending when force is applied.
-
Dust Extraction Port: Directional ejection chute that connects to standard shop vac hoses to keep the cut line clear of sawdust buildup.
-
Spindle Lock Button: Holds the gear assembly still to allow one-wrench blade changes without the arbor spinning freely.
Maxmech CS 1400-185 shifts from their concrete/demolition lineup into woodworking and timber construction. It is a 1400-watt handheld circular saw standard-fitted with a 185mm (7-1/4 inch) blade capacity, designed for cutting timber, plywood, MDF, and composite boards.
Technical Specifications
| Parameter | Specification |
| Model | CS 1400-185 |
| Rated Input Power | 1,400 Watts |
| Blade Diameter | 185 mm (7-1/4 inches) |
| Arbor / Bore Diameter | 20 mm (or 5/8″ depending on inner washer) |
| No-Load Speed | 4,800 – 5,500 RPM |
| Max Cutting Depth (90°) | ~62 mm – 65 mm |
| Max Cutting Depth (45°) | ~44 mm – 46 mm |
| Bevel Adjustment | 0° to 45° adjustable base plate |
| Voltage / Frequency | 220 V – 240 V / 50–60 Hz |
| Weight | ~4.0 – 4.5 kg |
| Weight | 2 kg |
|---|
