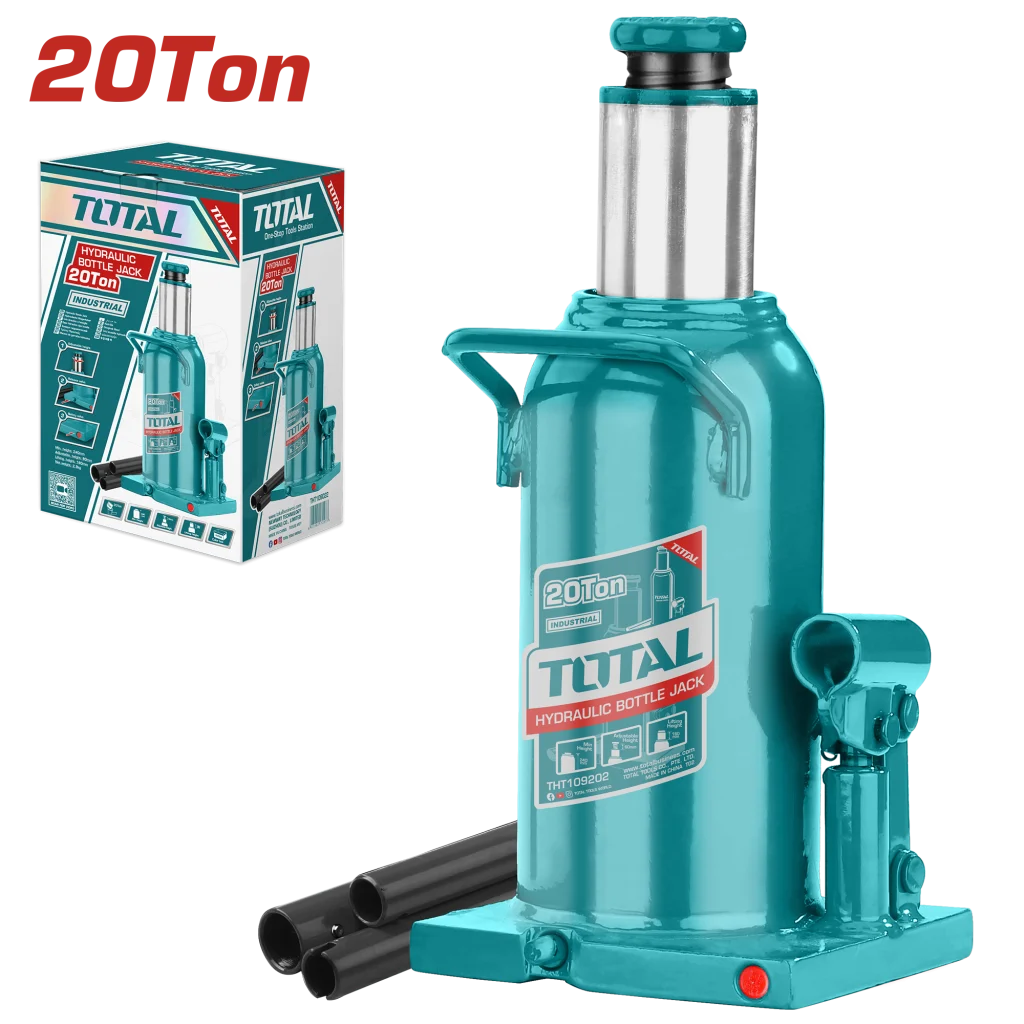

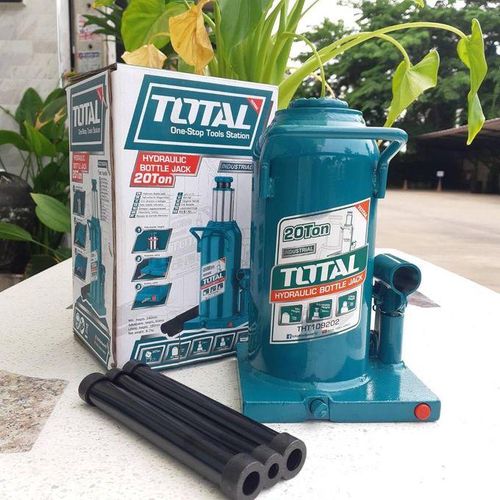

Total THT109202 Hydraulic bottle jack 20Ton With safety valve

Total THT109202 is an industrial-strength 20-ton hydraulic bottle jack engineered for heavy-duty commercial lifting, including large trucks, buses, heavy construction equipment, and industrial machinery.

Key Specifications:

• Lifting Capacity: 20 Tons (20,000 kg), providing immense lifting power for heavy commercial and industrial loads.

• Minimum Height: 235 mm, offering a stable base profile designed to position beneath high-capacity heavy-load clearance points.

• Maximum Height: 445 mm.

• Travel Distance (Lifting Range): 145 mm (along with a 65 mm adjustable screw extension for fine-tuned height positioning).

• Safety Feature: Integrated safety valve for overload protection, preventing the hydraulic mechanism from exceeding its 20-ton limit to ensure operator safety.

• Net Weight: 9.2 kg, featuring heavy-gauge steel construction built to endure rigorous industrial and roadside service environments.
