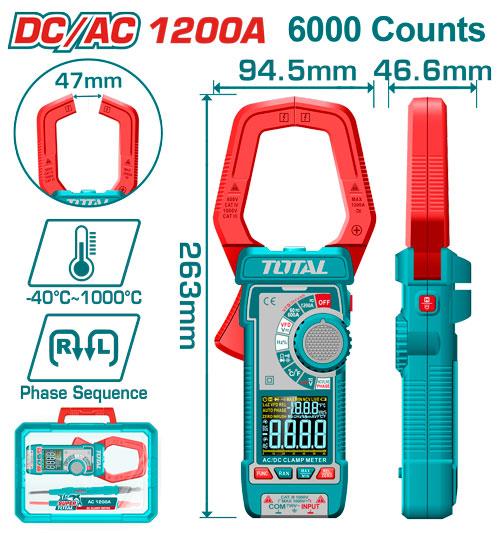

Total TMT7610002 DC/AC clamp meter 1000A 6000 counts
KSh 8,999.00
DC/AC clamp meter
VA colour display screen
Display : TRUR RMS 6000 counts
DC/AC Current:60A/600A/1000A
DC Voltage:600mV/6V/60V/600V/1000V
AC Voltage:600mV/6V/60V/600V/750V
Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ
/60MΩ
Capacitance:60.00nF/600.0nF/6.000uF/6
0.00uF/600.0uF/6.000mF/60.00mF
Frequency:10Hz/100Hz/1000Hz/10kHz/1
00kHz/1000kHz/10MHz
Temperature:-40.0℃~1000.0℃(-
40.0℉~1832.0℉)
TOTAL TMT7610002 is a heavy-duty 6000-count True RMS digital AC/DC clamp meter designed for high-capacity current measurement across industrial automation, solar photovoltaic arrays, electric vehicle (EV) power systems, and heavy industrial plant maintenance.
| Technical Specification | Detail |
| Model | TMT7610002 |
| Display Resolution | 6000 Counts True RMS LCD with backlight |
| AC Current Range | 60A / 600A / 1000A (±2.5%) |
| DC Current Range | 60A / 600A / 1000A (±2.5%) |
| AC Voltage Range | 600mV / 6V / 60V / 600V / 1000V (±1.0%) |
| DC Voltage Range | 600mV / 6V / 60V / 600V / 1000V (±0.8%) |
| Resistance Range | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ |
| Capacitance Range | 10nF / 100nF / 1000nF / 10μF / 100μF / 1000μF / 10mF / 100mF |
| Frequency / Temperature | 10Hz – 10MHz / -40°C to 1000°C (-40°F to 1832°F) |
| Jaw Capacity | Large 40 mm clamp jaw opening |
| Safety Rating | CAT III 1000V / CAT IV 600V |
| Special Functions | Inrush current measurement, VFD low-pass filter, DC Zero / Relative mode, NCV detection, Phase sequence indicator |
| Power Supply | 3 x AAA (LR03) 1.5V batteries |
| Packaging | Carrying case with heavy-duty test leads and K-type thermocouple probe |
Key Features:
-
1000A AC/DC Capability: Measures up to 1000A DC without breaking the line—critical for high-voltage DC battery banks, solar combiner boxes, and EV fast-charging stations.
-
Inrush & VFD Low-Pass Filter: Captures motor starting currents while filtering out high-frequency pulse-width modulation (PWM) noise generated by variable frequency drives.
-
Non-Contact Phase Sequence Test: Built-in non-contact detection checks phase rotation order (L1-L2-L3) to prevent reversed rotation damage in 3-phase AC motors.
-
True RMS Precision: Delivers accurate voltage and current measurements regardless of harmonic distortion or non-sinusoidal waveforms.
| Weight | 5 kg |
|---|
