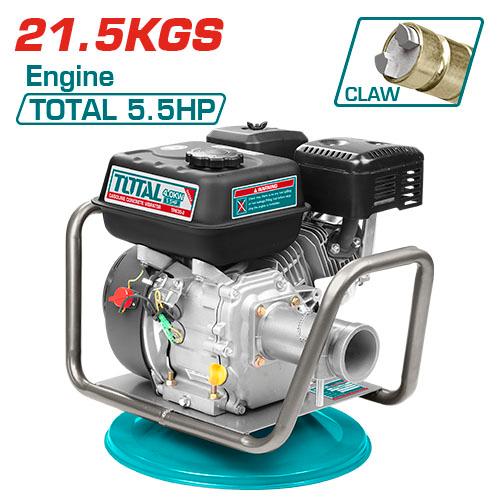

Total TP630-2 Gasoline concrete vibrator 21.5Kg 4.0kW(5.5HP）
KSh 35,999.00
Key Features & Operational Highlights
-
360° Swivel Base: Mounted on a rotating circular baseplate, allowing the engine unit to turn smoothly in all directions as the operator drags the flexible poker shaft around the pour site.
-

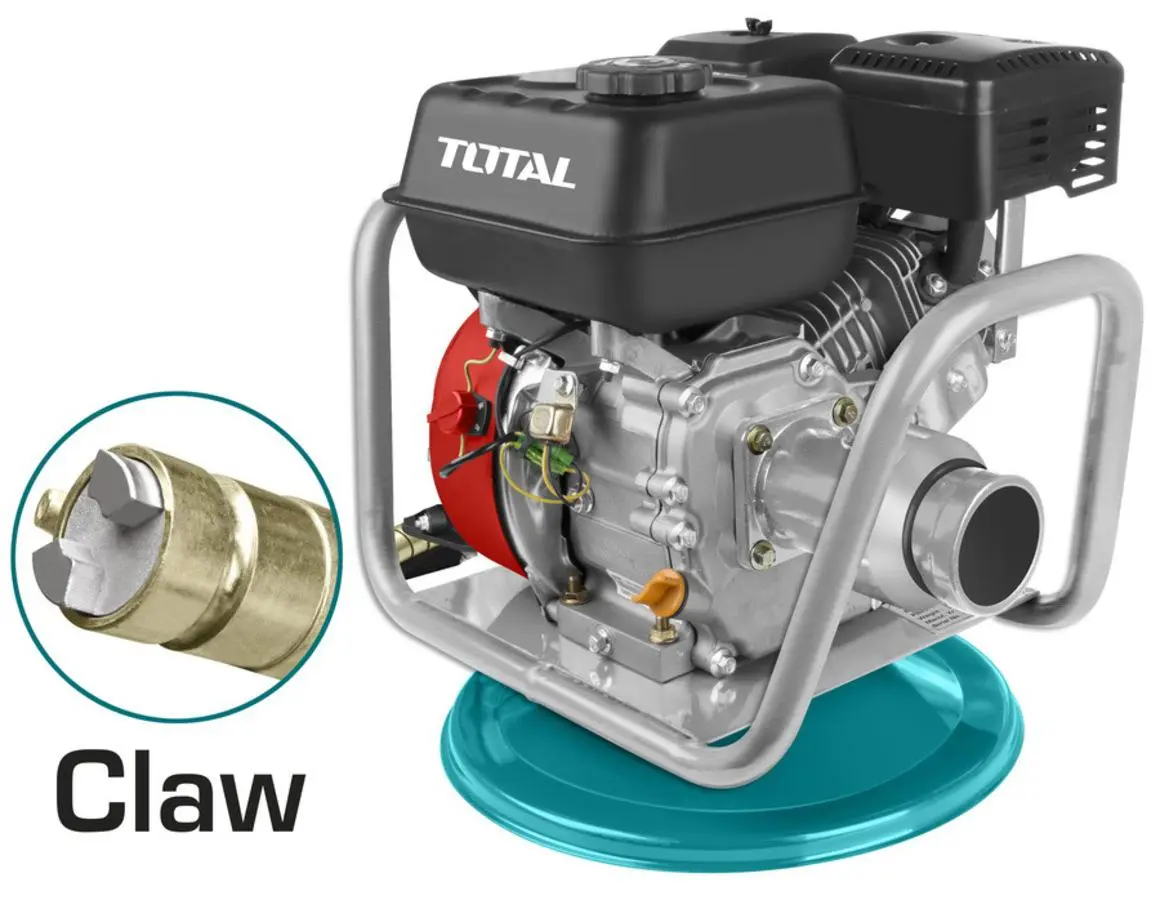

Universal Coupling Housing: Features a standard quick-connect joint (Dynapac or claw style) that accepts standard flexible vibrator hoses/pokers without requiring special tools.
-
Protective Tubular Frame: Surrounding steel roll-cage shields the engine components from jobsite impacts, concrete splatters, and accidental tip-overs.
-
Air-Cooled 4-Stroke Engine: Delivers consistent high-torque power to maintain high vibration frequencies inside dense, stiff concrete mixes without stalling.
TOTAL TP630-2 is a heavy-duty gasoline-powered concrete vibrator drive unit powered by a 4.0 kW (5.5 HP) 4-stroke engine. Weighing 21.5 kg, it serves as the portable power source designed to drive flexible poker shafts for consolidating wet concrete in slabs, footings, columns, and retaining walls.
Technical Specifications
| Feature / Metric | Specification |
| Model | TP630-2 |
| Equipment Type | Gasoline Concrete Vibrator Drive Unit |
| Engine Type | TOTAL 4-Stroke OHV Gasoline Engine |
| Engine Power | 4.0 kW / 5.5 HP |
| Operating Weight | 21.5 kg |
| Coupling / Joint Type | Dynapac type / Japanese claw coupling |
| Fuel Type | Unleaded Gasoline (Petrol) |
| Starting System | Recoil Pull Start |
| Base Design | 360° Swivel round base with protective tubular roll cage |
| Compatible Pokers | Standard flexible vibrator shafts (e.g., 38 mm or 45 mm heads) |
