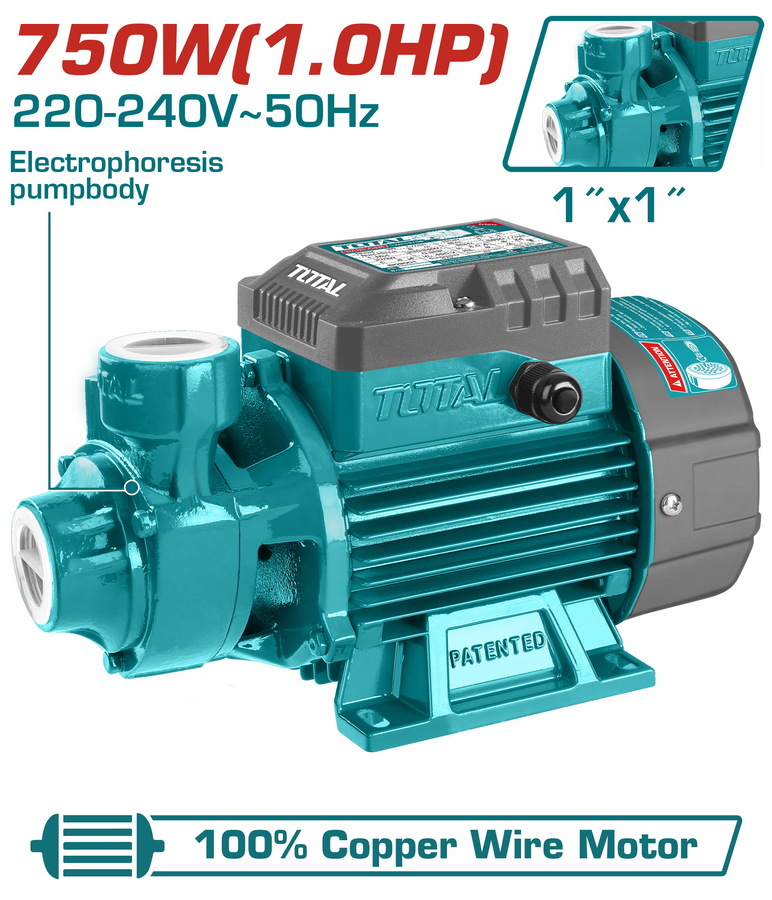

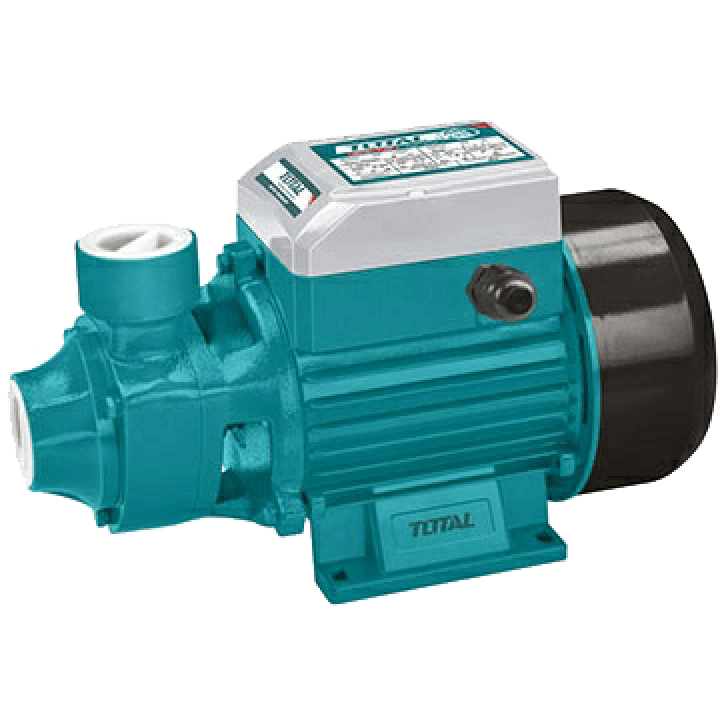

Total TWP17506 Peripheral pump 750W(1HP) Max.head:52M
KSh 10,500.00
Key Features & Ideal Applications
-
High-Pumping Head (52m): Pushes clean water to high elevations, making it suitable for multi-story buildings, tall rooftop tanks, or steep inclined plumbing runs.
-
100% Copper Wire Motor: Operates cooler under continuous load, providing greater energy efficiency and a longer working lifespan than aluminum-wound pumps.
-
Electrophoresis Anti-Rust Treatment: The cast-iron housing is coated using an electro-deposition process to prevent internal corrosion, scaling, and impeller seize-ups during periods of disuse.
-
Brass Impeller & Stainless Shaft: Provides wear resistance against micro-abrasives while ensuring smooth high-RPM rotation.
-
Thermal Overload Protector: Integrated thermal sensor automatically cuts power if the pump overheats or runs dry, protecting the motor windings from damage.
TOTAL TWP17506 is a high-head peripheral water pump powered by a 750W (1.0 HP) motor. Engineered with a brass impeller, 100% copper wire winding, and an anti-rust treated pump body, it is designed for pumping clean water across high vertical elevations, filling elevated storage tanks, and boosting pressure in multi-story residential or light commercial setups.
Technical Specifications
| Feature | Specification |
| Model | TWP17506 |
| Input Power | 750 Watts (1.0 HP) |
| Voltage / Frequency | 220–240V ~ 50Hz |
| Max. Head (Lift) | 52 Meters |
| Max. Suction Lift | 8 Meters |
| Max. Flow Rate | 50 Liters/min (3.0 m³/h) |
| Inlet / Outlet Size | 1″ x 1″ (25 mm) |
| Impeller Material | Brass |
| Shaft Material | Stainless Steel |
| Motor Winding | 100% Copper Wire |
| Protection Rating | IPX4 |
| Weight | ~9.5 – 10.0 kg |
| Weight | 2 kg |
|---|
