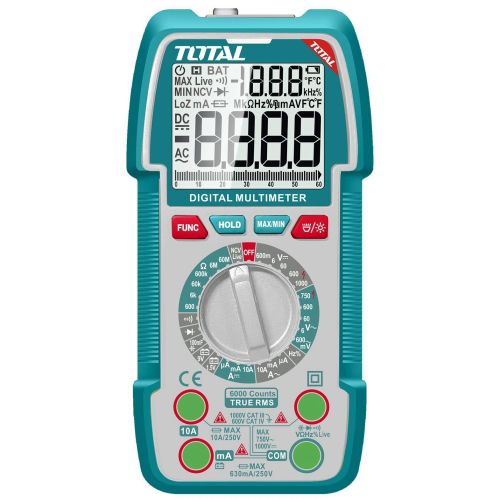

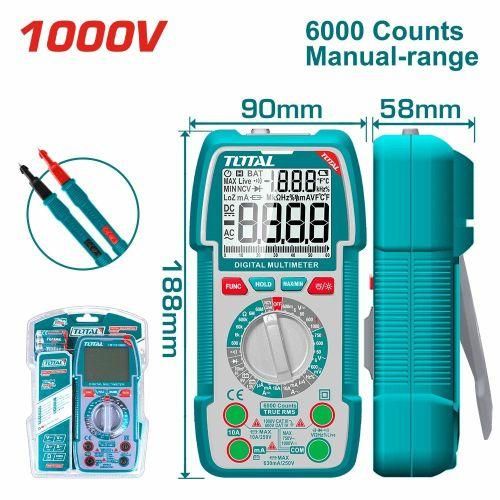

Total TMT5310002 Digital multimeter 1000V 6000 counts
KSh 5,500.00
Digital multimeter
Display : TRUR RMS 6000 counts
DC/AC Current:
6000uA/60mA/600mA/10A
DC Voltage:600mV/6V/60V/600V/1000V
AC Voltage:600mV/6V/60V/600V/750V
Resistance:600Ω/6kΩ/60kΩ/600kΩ/6M
Ω/60MΩ
Capacitance:10nF/100nF/1000nF/10uF/1
000uF/10mF/100mF
Frequency:10Hz/100Hz/1000Hz/10kHz/1
00kHz/1000kHz/10MHz
Duty cycle: 1%~95% ±(2.0% +3)
Non-contact voltage detection
The TOTAL TMT5310002 is a high-precision, True RMS auto-ranging digital multimeter built for industrial maintenance, HVAC diagnostics, and professional electrical engineering applications.
| Technical Specification | Detail |
| Model | TMT5310002 |
| Display Resolution | 6000 Counts True RMS LCD screen |
| DC Voltage Range | 600mV / 6V / 60V / 600V / 1000V (±0.5%) |
| AC Voltage Range | 600mV / 6V / 60V / 600V / 750V (±0.8%) |
| DC / AC Current | 60μA / 6mA / 60mA / 600mA / 10A (±1.0%) |
| Resistance Range | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ |
| Capacitance Range | 10nF / 100nF / 1000nF / 10μF / 100μF / 1000μF / 10mF / 100mF |
| Frequency Range | 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz |
| Temperature Range | -20°C to 1000°C (-4°F to 1832°F) |
| Safety Rating | CAT III 1000V / CAT IV 600V |
| Special Features | Non-Contact Voltage (NCV) detection, Live line test, Duty cycle, Min/Max hold |
| Power Supply | 2 x AA (LR6) 1.5V batteries |
Key Features:
-
True RMS Accuracy: Measures both sinusoidal and non-sinusoidal AC waveforms accurately, making it suitable for modern variable frequency drives (VFDs) and electronic loads.
-
Non-Contact Voltage (NCV) Sensor: Integrated top-edge sensor detects live AC voltage without physical contact, providing visual and audible warnings.
-
Auto-Ranging with Fast Response: Automatically selects the optimal measuring range for speed while allowing manual range overrides when preferred.
-
Temperature & Capacitance Diagnostics: Includes a K-type thermocouple probe for motor/HVAC thermal checks and tests large industrial capacitors up to 100mF.
| Weight | 2 kg |
|---|
