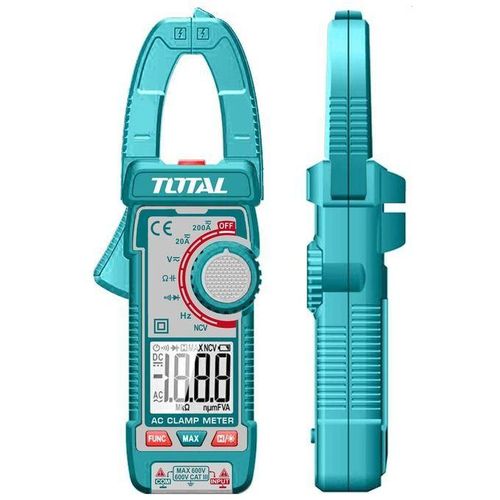

Total TMT762001 Digital AC clamp meter 400A 4000Counts
KSh 3,999.00
Digital AC clamp
meter
Display : TRUR RMS 4000 counts
AC Current:4A/40A/400A
DC/AC Voltage:400mV/4V/40V/600V
Resistance:400Ω/4kΩ/40kΩ/400kΩ/4MΩ
/40MΩ
Capacitance:4nF/40nF/400nF/4uF/40uF/
400uF/4mF
Data Hold
NCV
Diode test
Low battery indication
Auto power off
With 2pcs LR03 AAA batteries
TOTAL TMT762001 is a portable digital AC clamp meter engineered for non-invasive current measurements up to 400A, electrical troubleshooting, HVAC service, and residential/commercial diagnostics.
| Technical Specification | Detail |
| Model | TMT762001 |
| Display Count | 4000 Counts LCD display with backlight |
| AC Current Range | 4A / 40A / 400A (±2.5%) |
| AC Voltage Range | 4V / 40V / 400V / 600V (±1.0%) |
| DC Voltage Range | 400mV / 4V / 40V / 400V / 600V (±0.8%) |
| Resistance Range | 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ |
| Capacitance Range | 4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF |
| Frequency Range | 40Hz – 100Hz |
| Jaw Opening Capacity | Approx. 24 mm |
| Safety Rating | CAT III 600V |
| Special Functions | Non-Contact Voltage (NCV) detection, Diode test, Continuity buzzer, Data hold, Auto power off |
| Power Supply | 2 x AAA (LR03) 1.5V batteries |
| Packaging | Double blister packaging with test leads and carrying pouch |
Key Features:
-
Non-Invasive Clamp Measurement: Clamps directly over isolated conductors to measure live AC current up to 400A safely without breaking the circuit.
-
Non-Contact Voltage (NCV) Sensor: Built-in tip sensor detects live AC voltage lines without electrical contact, warning the user via audible and visual indicators.
-
Full Multimeter Capabilities: Functions as a complete digital meter, supporting AC/DC voltage, resistance, capacitance, diode testing, and audible continuity.
-
Compact Ergonomic Design: Features a 24mm jaw opening optimized for standard conductor bundles and tight electrical panels.
| Weight | 2 kg |
|---|
