Total TP7100-2 Gasoline plate compactor 90Kg 4.8Kw(6.5HP)
KSh 79,999.00
Key Features & Design Highlights
-
High Centrifugal Impact (15 kN): Delivers deep impact force to eliminate air pockets in sub-base layers and achieve solid soil density.
-
Curved Edge Steel Plate: Open self-cleaning base plate with radiused edges prevents tracking gouges when turning on fresh asphalt or soil.
-
Vibration-Isolated Handle: Heavy-duty rubber shock mounts isolate the operating handle, reducing arm and hand fatigue during long shifts.
-
Protective Engine Roll Cage: Built-in tubular steel frame shields the engine from jobsite impacts and provides a balanced central lifting hook for loading onto truck beds.
-
Optional Water Tank Compatibility: Designed to accept an overhead water tank attachment for dust suppression and asphalt compaction without sticking.

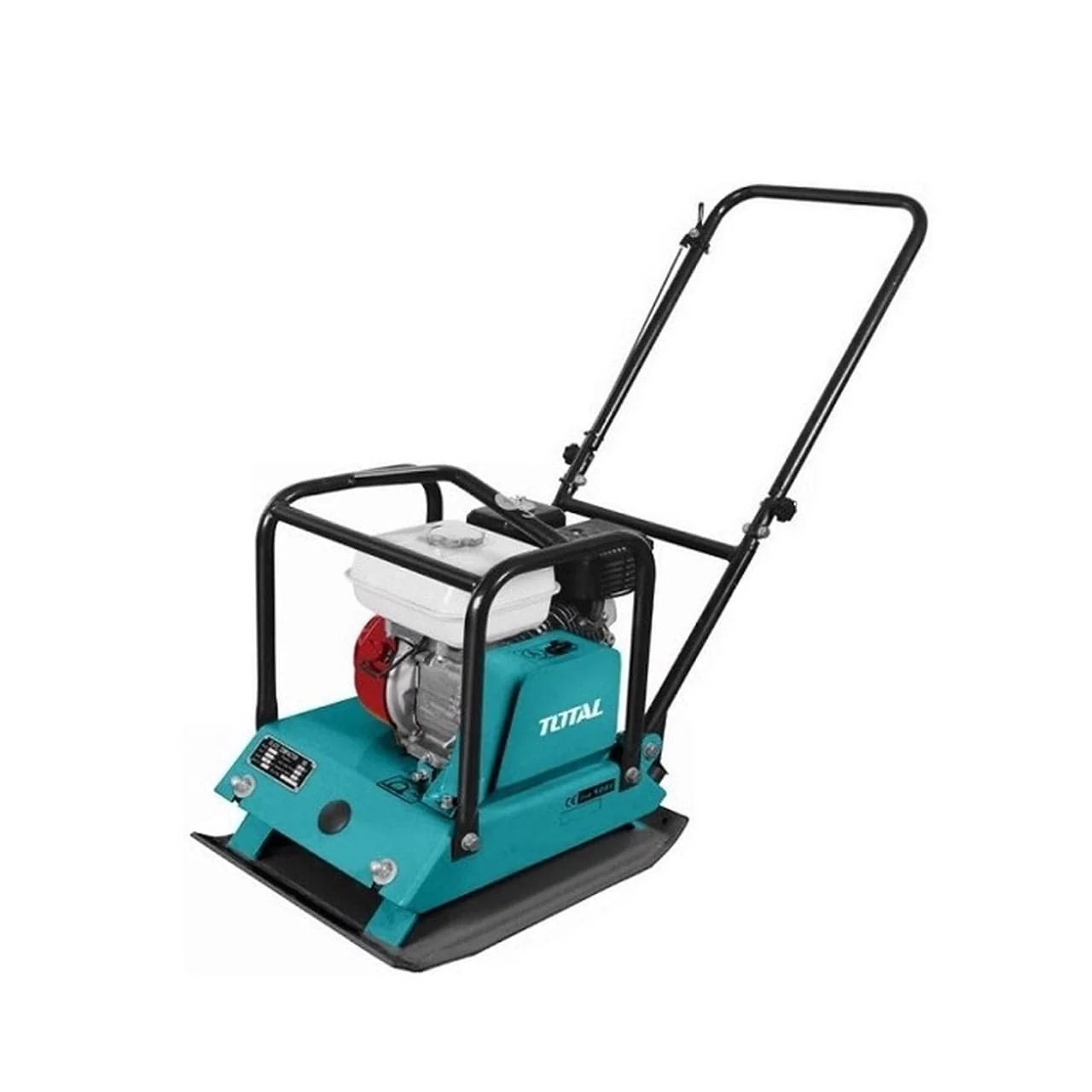

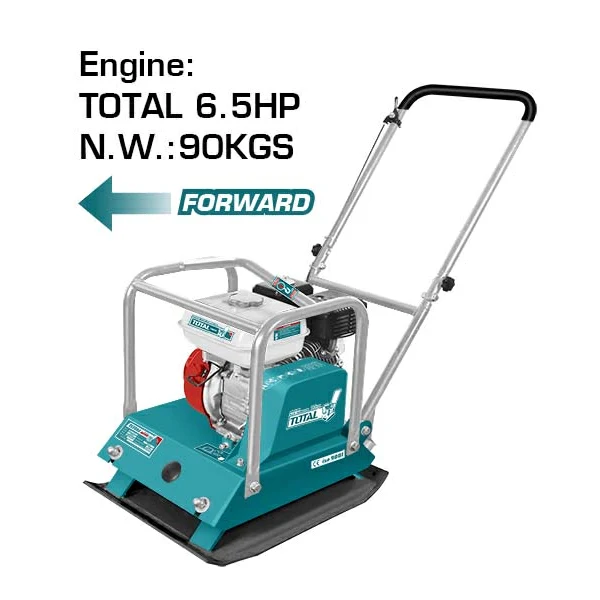

TOTAL TP7100-2 is a heavy-duty forward plate compactor driven by a 4.8 kW (6.5 HP) 4-stroke gasoline engine. Weighing 90 kg and generating 15 kN of centrifugal force, it is engineered for compacting granular soils, gravel, crushed stone, sand, and asphalt during driveway construction, trench backfilling, and road repairs.
Technical Specifications
| Feature / Metric | Specification |
| Model | TP7100-2 |
| Engine Type | TOTAL 4-Stroke Gasoline OHV Engine |
| Engine Power | 4.8 kW / 6.5 HP |
| Operating Weight | 90 kg |
| Centrifugal Force | 15.0 kN |
| Vibration Frequency | 4,200 vpm (vibrations per minute) |
| Plate Size | 50 cm × 45 cm (approx. 500 × 450 mm) |
| Compaction Depth | Up to 30 cm (soil-dependent) |
| Travel Speed | Approx. 20 m/min (forward direction) |
| Drive System | Centrifugal clutch via V-belt |
| Weight | 50 kg |
|---|
