Total TP7125-2 Gasoline reversible plate compactor 127Kg 4.8kW(6.5HP)
KSh 145,000.00
Key Features & Operational Advantages
-
Reversible Travel (Forward & Reverse): Managed via a directional control lever on the handle, allowing seamless back-and-forth passes in narrow trenches, along retaining walls, and around foundations.
-
Higher Compaction Impact (25 kN): Delivers significantly greater impact force than standard forward-only units, enabling faster single-pass soil consolidation and deeper compaction lifts.
-
Heavy Ductile Iron Plate: Resists abrasion and distortion under continuous heavy compaction against gravel, crushed stone, and coarse sub-bases.
-
Enclosed Protective Frame: Heavy-duty tubular cage surrounds the engine to shield it against jobsite impacts and features a central lifting hook for hoist transport.
-
Vibration-Damped Handle Bar: Isolates the operator from intense vibration, reducing fatigue during long backfilling jobs.

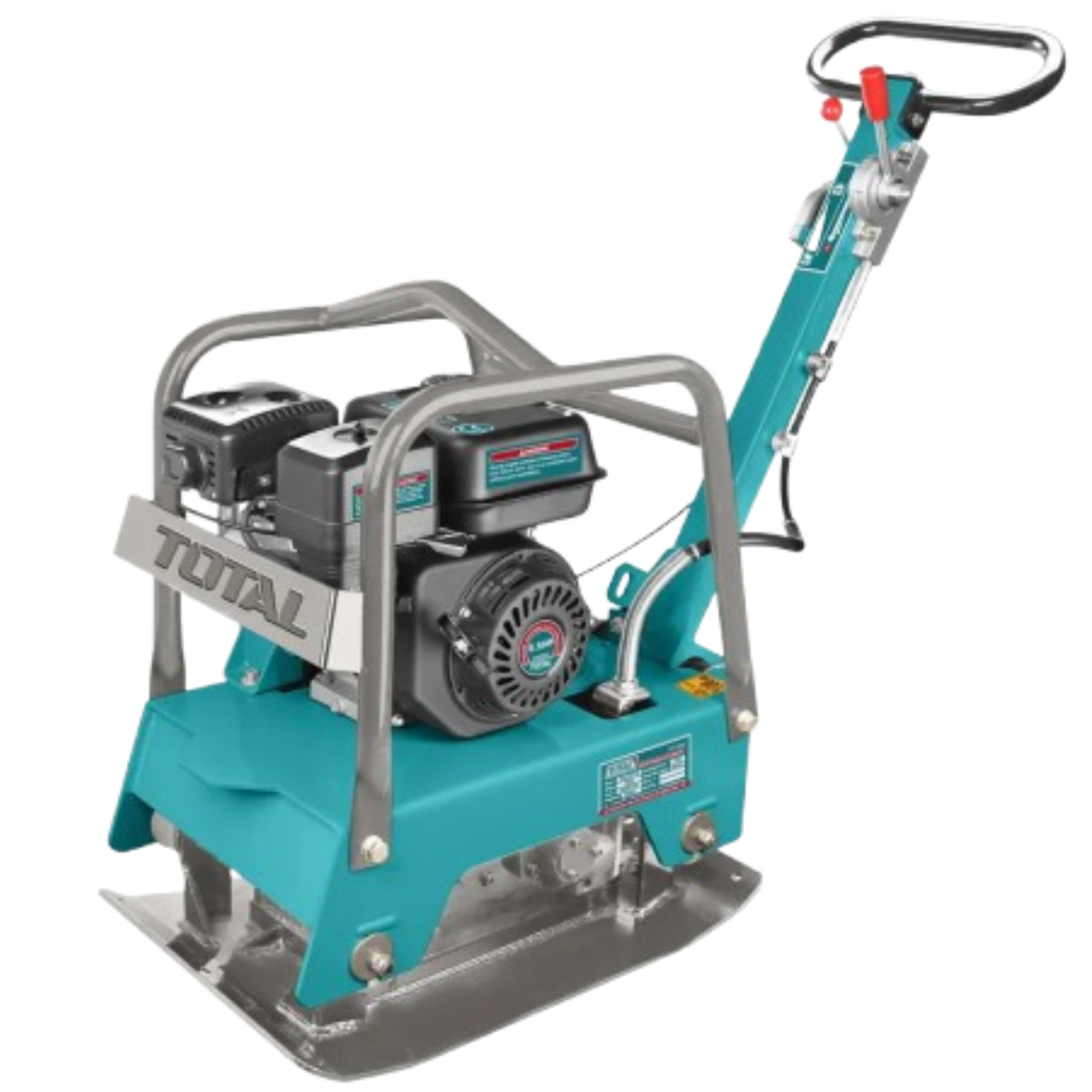

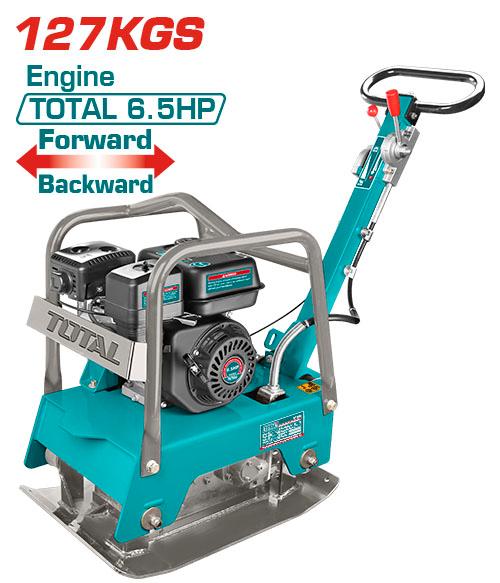

TOTAL TP7125-2 is a heavy-duty, reversible gasoline plate compactor driven by a 4.8 kW (6.5 HP) 4-stroke OHV engine. Weighing 127 kg and generating 25 kN of compaction force, its dual-direction travel control makes it ideal for deep trenching, pipe backfilling, foundation bases, and tight jobsite areas where turning a forward-only compactor is impractical.
Technical Specifications
| Feature / Metric | Specification |
| Model | TP7125-2 |
| Compactor Type | Reversible Plate Compactor (Forward & Reverse) |
| Engine Type | TOTAL 4-Stroke OHV Gasoline Engine |
| Engine Power | 4.8 kW / 6.5 HP |
| Operating Weight | 127 kg |
| Centrifugal Force | 25.0 kN |
| Vibration Frequency | 4,300 vpm |
| Plate Size | 63 cm × 40 cm (approx. 630 × 400 mm) |
| Compaction Depth | Up to 30 cm – 40 cm (depending on soil type) |
| Travel Speed | Up to 25 m/min |
| Direction Control | Hydraulic / Mechanical direction control lever |
