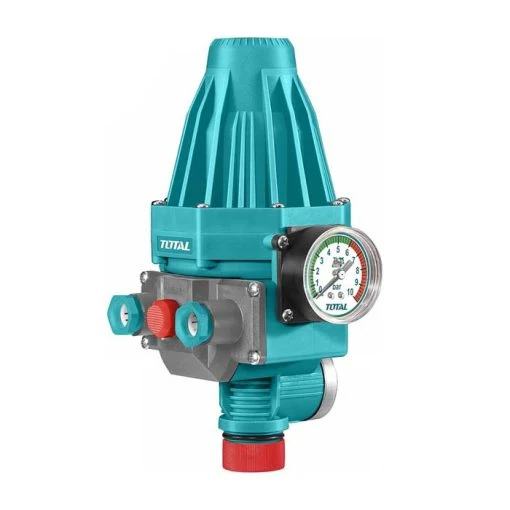

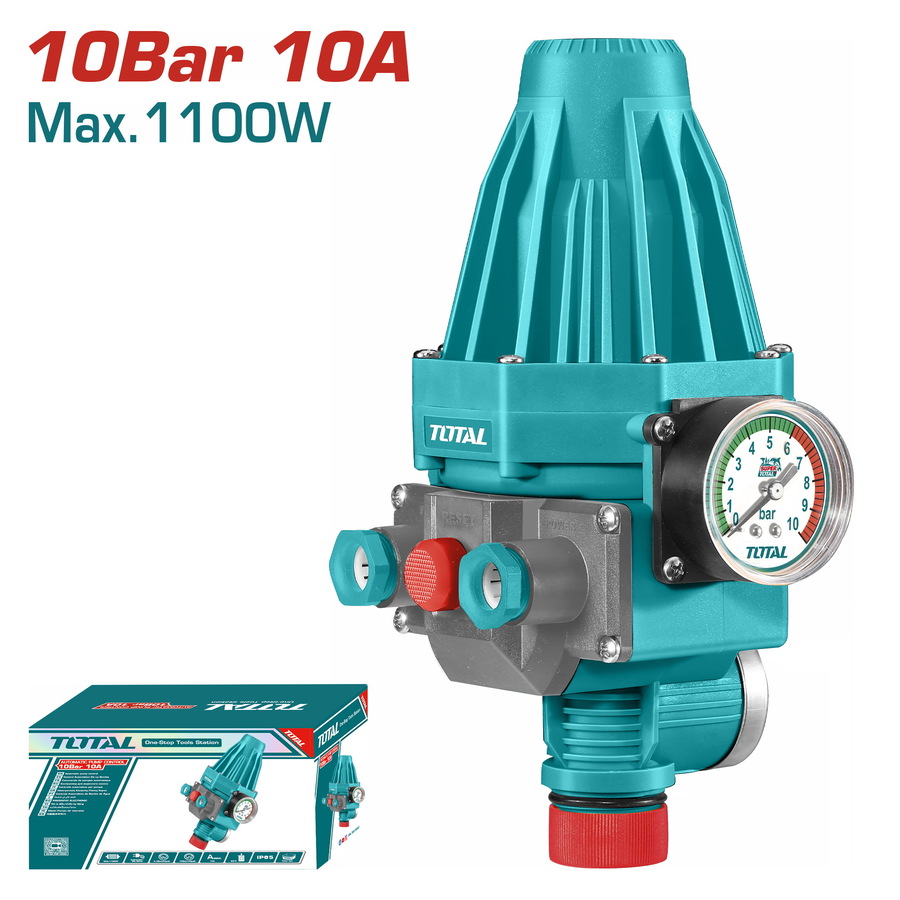

Total TWPS102 Automatic pump control 1100W
KSh 5,500.00
Operating Capabilities & Safety Features
-
Dry-Run Protection: Automatically shuts down the pump if water source runs dry, preventing impeller and seal damage.
-
Built-In Pressure Gauge: Integrated analog gauge allows instant monitoring of system pressure on the discharge line.
-
Non-Return Valve: Integrated check valve stops backflow and keeps the system primed between operations.
-
Status Indicators: LED lights indicate Power On, Pump Running, and Failure (dry-run tripped) with a manual reset button.
TOTAL TWPS102 is an electronic pressure controller (presscontrol) designed to automate clean water surface pumps up to 1100W (1.5 HP). It senses water demand by monitoring line pressure and flow, automatically starting the pump when a tap opens and stopping it when flow ceases, eliminating the need for a traditional pressure tank setup.
Key Technical Specifications
| Feature / Metric | Specification |
| Model | TWPS102 |
| Rated Voltage | 220–240 V ~ 50/60 Hz |
| Max. Allowed Motor Power | 1100 W (1.5 HP) |
| Max. Current | 10 A |
| Cut-In / Starting Pressure | Fixed at 1.5 bar |
| Max. Working Pressure | 10 bar |
| Inlet / Outlet Thread | 1″ Male × 1″ Male (G1) |
| Ingress Protection | IP65 (weather/dust resistant) |
| Max. Liquid Temperature | 60°C |
