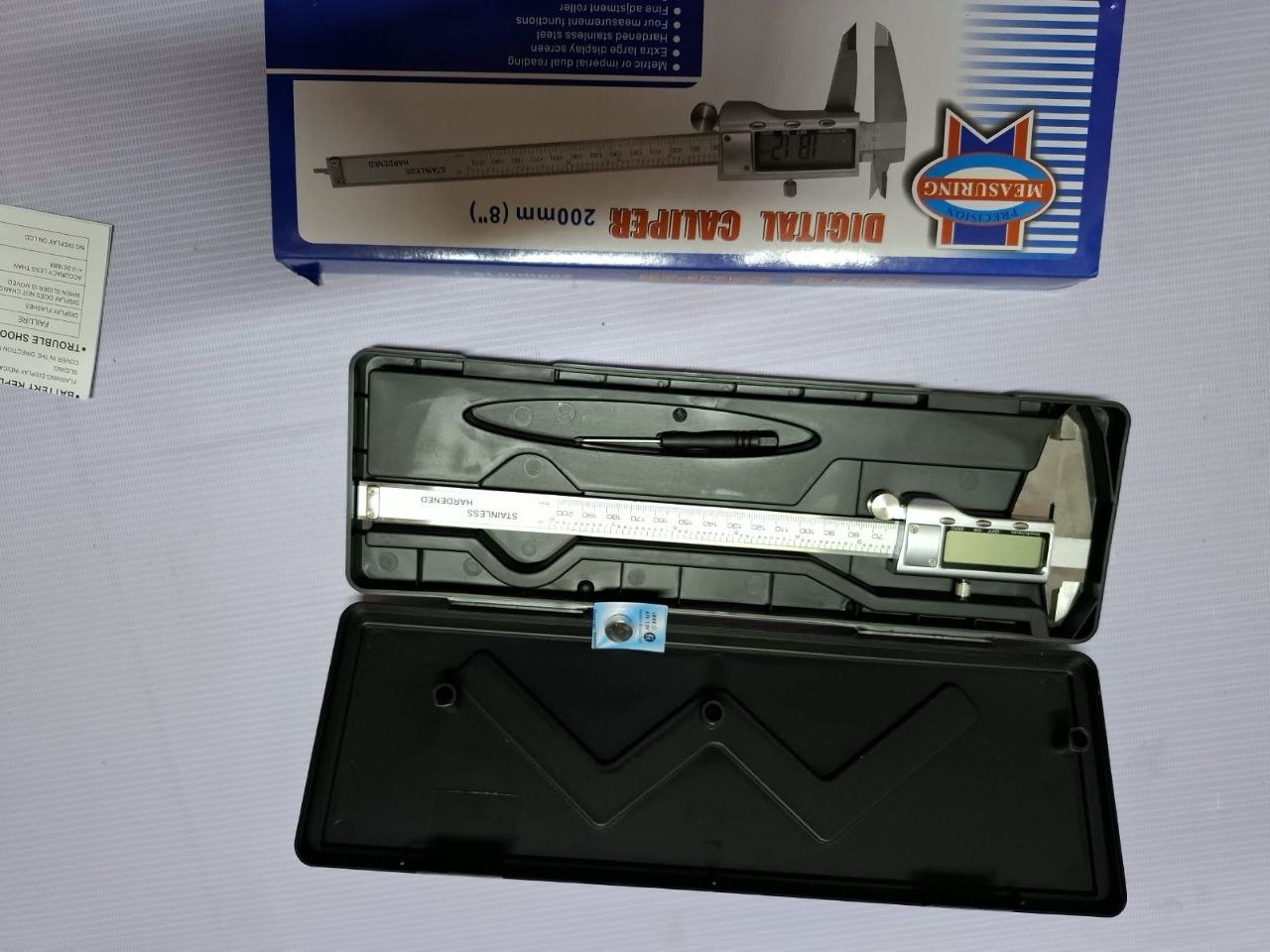

8-inch (200mm) digital stainless steel vernier caliper

Key Features & Specifications

• Measuring Range: 0 to 8 inches (0 to 200 mm)

• Material: Hardened, corrosion-resistant stainless steel frame, providing durability and protection against wear.

• Accuracy & Resolution: Typically offers a resolution of 0.01 mm (or 0.0005 inches) and an accuracy of approximately ±0.02 mm to ±0.03 mm.

• Digital Display: A clear LCD screen that eliminates reading errors common with traditional analog scales.

• Unit Conversion: Instantly switches between metric (mm) and imperial (inches) at the push of a button.

• Zero/Tare Function: Allows you to reset the display to zero at any position for comparative or differential measurements.

• Locking Screw: A knurled thumb screw on top locks the sliding jaw in place to preserve a measurement reading.

• Thumb Roller: Enables smooth, precise manual adjustments of the slider.

4-Way Measurement Capabilities

1. Outer Diameter (OD): Using the large external jaws to measure the outside of objects, rods, or shafts.

2. Inner Diameter (ID): Using the smaller internal jaws to measure the inside of holes, pipes, or cylinders.

3. Depth: Utilizing the slender depth blade extending from the tail to measure the depth of holes or recesses.

4. Step: Using the stepped edges of the body to measure relative height differences or shoulders.
