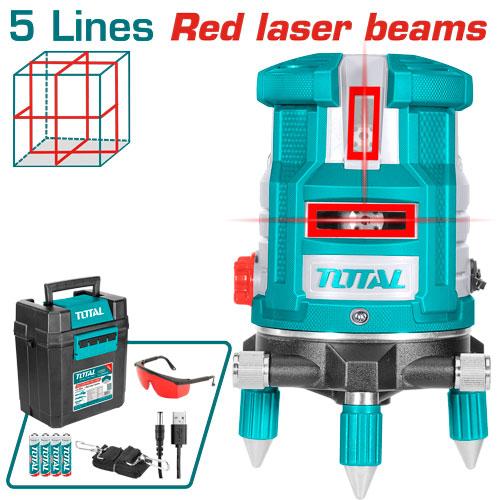

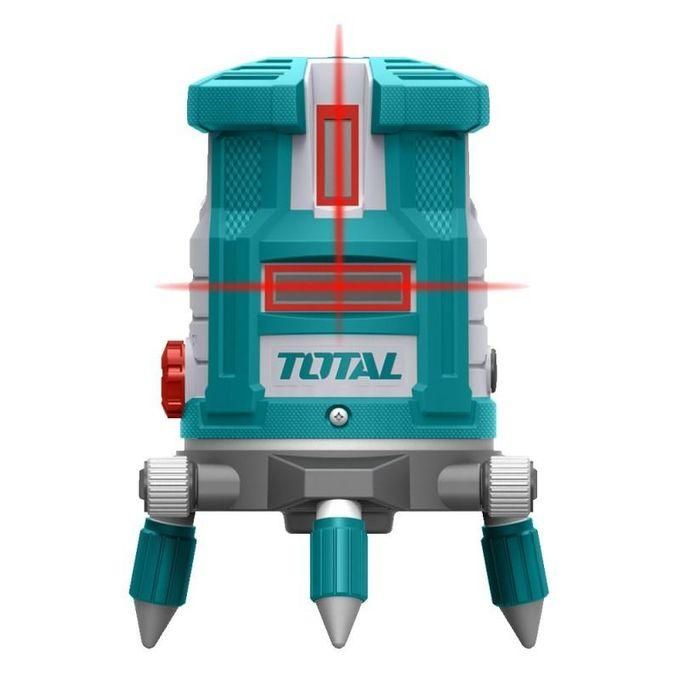

Total TLL306505 Self-leveling line laser(Red laser beams) 0~30 m
KSh 17,500.00
Self-leveling line
laser(Red laser
beams)
Working Range: 0~30 m
1 Horizontal Line4 Vertical Lines
Levelling accuracy:±1.0mm at 5 m
Line accuracy ±1.5mm at 5 m
Levelling time<3s
Self-levelling range ≤3°
Laser Type : Red
Laser Class 3R，<5mW
Without tripods, match with
TLLT01152 tripods
With Cross Lock Function
With Laser Gain Function
Operating temperature 0~+40℃
Storage temperature -20~+70℃
Batteries AA(1.5V)*4
Weight without batteries 980 g
Packed by plastic box
TOTAL TLL306505 is a professional self-leveling line laser level designed for layout work, tiling, ceiling installation, and structural alignment over distances up to 30 meters.
| Technical Specification | Detail |
| Model | TLL306505 |
| Working Range | 0 – 30 m |
| Laser Diode / Class | Red Laser (635 nm), Class II (<1mW) |
| Leveling Accuracy | ± 1.5 mm at 5 m |
| Line Accuracy | ± 1.5 mm at 5 m |
| Self-Leveling Range | ≤ 3° |
| Leveling Time | < 4 seconds |
| Power Supply | 4 x AA (LR6) 1.5V batteries |
| Mounting Thread | 5/8″ tripod thread (compatible with TLLT01152) |
| Packaging | Robust blow-molded carrying case with protective safety glasses |
Key Features:
-
Self-Leveling Pendulum System: Internal magnetic damping pendulum automatically compensates for slope angles up to 3°; flashes an out-of-level warning when exceeding range.
-
360° Rotatable Base: Heavy-duty metal base with fine-tuning micro-adjustment knobs for precise manual point alignment over long distances.
-
Pendulum Lock Protection: Integrated power switch locks the internal mechanism during transport to prevent alignment damage.
-
High-Visibility Red Beams: Projects bright horizontal and vertical reference lines with a dedicated plumb-down point for accurate transfers.
| Weight | 10 kg |
|---|
