Total TLL156506 Self-leveling line laser 0~15 m
KSh 8,500.00
Self-leveling line
laser
Working Range: 0~15 m
Line accuracy ±1.5mm at 5 m
Levelling time<4s
Self-levelling angle ≤4°
Laser Type 650nm
Laser Class Ⅱ，<1mW
With magnet
With hanging hole
Without tripods, match with TLLT01152
tripods
With Horizontal and Vertical Line
Function
With Cross Lock Function
With Laser Gain Function
Operating temperature 0~+40℃
Operating temperature -20~+70℃
TOTAL TLL156506 is an entry-level self-leveling cross-line laser level tailored for indoor precision layout tasks up to 15 meters, such as hanging shelves, picture framing, socket alignment, and basic wall tiling.
| Technical Specification | Detail |
| Model | TLL156506 |
| Working Range | 0 – 15 m |
| Laser Diode / Class | Red Laser (635 nm), Class II (<1mW) |
| Leveling Accuracy | ± 1.5 mm at 5 m |
| Line Accuracy | ± 1.5 mm at 5 m |
| Self-Leveling Range | ≤ 4° |
| Leveling Time | < 4 seconds |
| Beam Configuration | 1 Horizontal Line / 1 Vertical Line (Cross-line) |
| Power Supply | 3 x AA (LR6) 1.5V batteries |
| Mounting Thread | 1/4″ tripod thread |
| Packaging | Color box with protective carrying pouch |
Key Features:
-
Automatic Self-Leveling: Internal magnetic pendulum self-levels within a 4° window and alerts the user if the housing is tilted beyond operational limits.
-
Compact Cross-Line Projection: Projects simultaneous high-visibility red horizontal and vertical lines to form an accurate 90° reference cross.
-
Pendulum Lock Switch: Secure lock mechanism protects the internal leveling pendulum from shock damage while in transport or storage.
-
Energy-Efficient Design: Optimized power usage runs on 3 standard AA batteries, offering extended runtime for residential indoor jobs.
| Weight | 5 kg |
|---|
Related products
0-150mm (6-inch) stainless steel analog vernier caliper
Original price was: KSh 2,500.00.KSh 2,000.00Current price is: KSh 2,000.00.
150mm (6″) digital caliper
KSh 2,850.00
DeWalt 5V Max green laser level kit
KSh 8,500.00
Kzubr KLL-G16-ZJ 16-line green laser level kit
KSh 10,999.00
Stainless steel digital caliper 150mm (6-inch)
KSh 2,950.00
Total Electronic scale 30kg
KSh 5,500.00

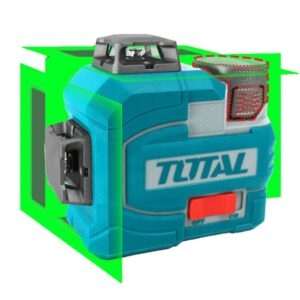

Total TLL301201 Cordless 3D laser level 16V 0~35 m
KSh 22,999.00
Total TLL301205 Cordless 3D laser level 16V 0~35 m
KSh 23,500.00
Total TLL3012165 Cordless 3D-laser level 20V 0~35m
KSh 25,000.00

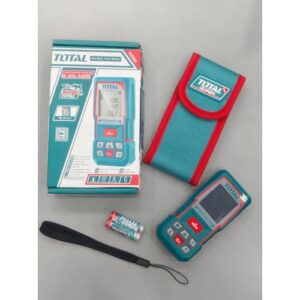

Total TMT51036 Laser distance detector 0.05-100m
