Total TLL3012165 Cordless 3D-laser level 20V 0~35m
KSh 25,000.00
Cordless 3D-laser
level
Green laser level
Voltage: 20V
Working range: 0~35m
Self-levelling angle: ≤4°
Laser class II, <1mW
Levelling accuracy:±1.5mm@7m
Line accuracy:±1.5mm@7m
With 1pcs 360° horizontal and 2pcs 360°
vertical laser line
Operating temperature: 0~+40℃
Storage temperature: -10~+50℃
Include:
1 Pcs magnetic liftable rotating stand
1 PCs rotary base with 3 adjustable feet
1 Pcs laser target plate

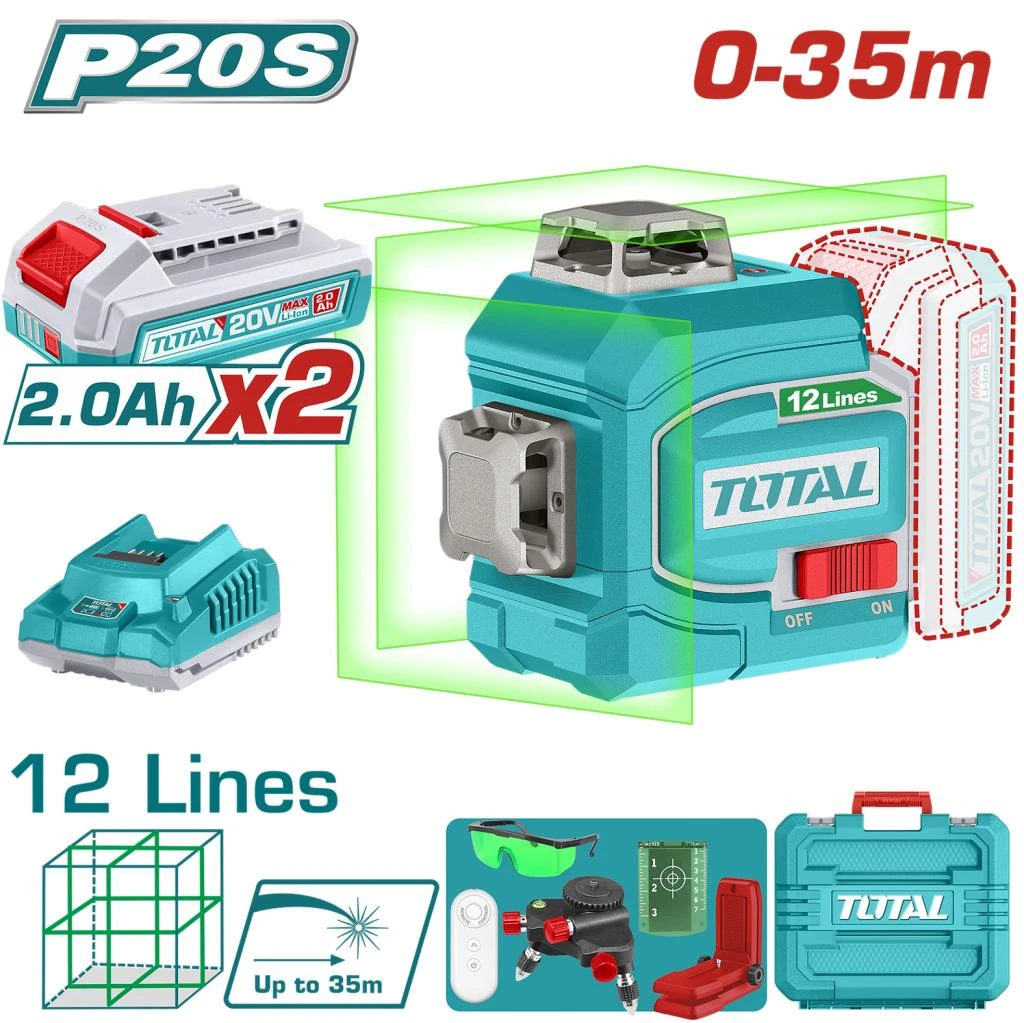

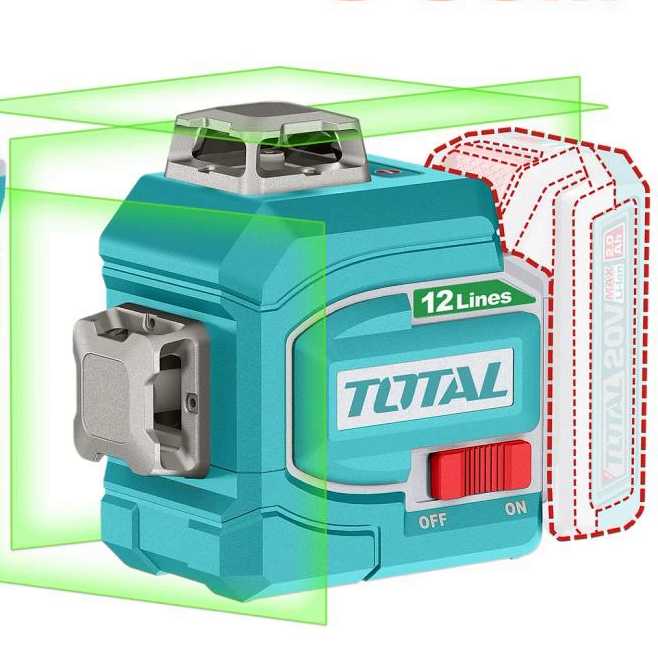

TOTAL TLL3012165 is a professional 20V cordless 3D laser level that integrates into the TOTAL P20S Power Tools System. It projects three full 360-degree green laser planes (12 lines in total) for full-room alignment, floor-to-ceiling tracking, and partition framing.
| Technical Specification | Detail |
| Model | TLL3012165 |
| Voltage Platform | 20V Lithium-Ion (P20S Multi-Tool System) |
| Working Range | 0 – 35 m (up to 60 m with receiver) |
| Laser Diode / Beam Color | High-intensity Green Beam (515–520 nm), Class II |
| Laser Configuration | 12 Lines (3 x 360° planes: 1 Horizontal, 2 Vertical) |
| Leveling Accuracy | ± 1.5 mm at 7 m |
| Self-Leveling Range | ≤ 4° |
| Leveling Time | < 3 seconds |
| Mounting Thread | 1/4″ & 5/8″ dual thread adapter |
| Power Supply | Compatible with all TOTAL P20S 20V batteries (2.0Ah / 4.0Ah / 5.0Ah) |
| Packaging | Blow-molded heavy-duty carrying case with accessories |
Key Features:
-
P20S System Cross-Compatibility: Operates on TOTAL’s flagship 20V battery platform, allowing contractors to swap batteries directly with their 20V drills, grinders, and saws.
-
Complete 360° 3D Grid: Projects three simultaneous 360° green laser rings to establish instantaneous 90° plumb, square, and level reference lines on all four walls, floor, and ceiling.
-
High-Visibility Green Diodes: Provides clear visibility across bright interior sites and wide spans up to 35 meters without requiring external target plates.
-
Rugged Over-Molded Housing: Impact-resistant frame built with protective rubber bumpers for protection against job site drops, dust, and water splash.
| Weight | 10 kg |
|---|
Related products
150mm (6″) digital caliper
KSh 2,850.00
DeWalt 5V Max green laser level kit
KSh 8,500.00
Kzubr KLL-G16-ZJ 16-line green laser level kit
KSh 10,999.00
Stainless steel digital caliper 150mm (6-inch)
KSh 2,950.00
Total Electronic scale 30kg
KSh 5,500.00
Total TLL156503 Self-leveling line laser 0~18m
KSh 7,750.00
Total TLL301201 Cordless 3D laser level 16V 0~35 m
KSh 22,999.00
Total TLL301205 Cordless 3D laser level 16V 0~35 m
KSh 23,500.00
Total TMT51036 Laser distance detector 0.05-100m
KSh 6,999.00

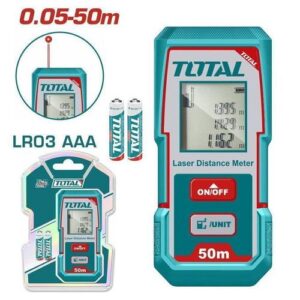

Total TMT55016 Laser distance detector 0.05-50m
