Total TLL301205 Cordless 3D laser level 16V 0~35 m
KSh 23,500.00
Cordless 3D laser
level
Green laser level
Voltage: 16V
Working range: 0~35 m
Self-levelling angle: ≤4°
Laser class II: <1mW
Levelling accuracy:±1.5mm@7m
Line accuracy:±1.5mm@7m
1 Pcs 360° horizontal and 2 pcs 360°
vertical laser line
Operating temperature: 0~+40℃
Storage temperature: -10~+50℃
Include:
1 Pcs magnetic liftable rotating stand
1 Pcs rotary base with 3 pcs adjustable
feet

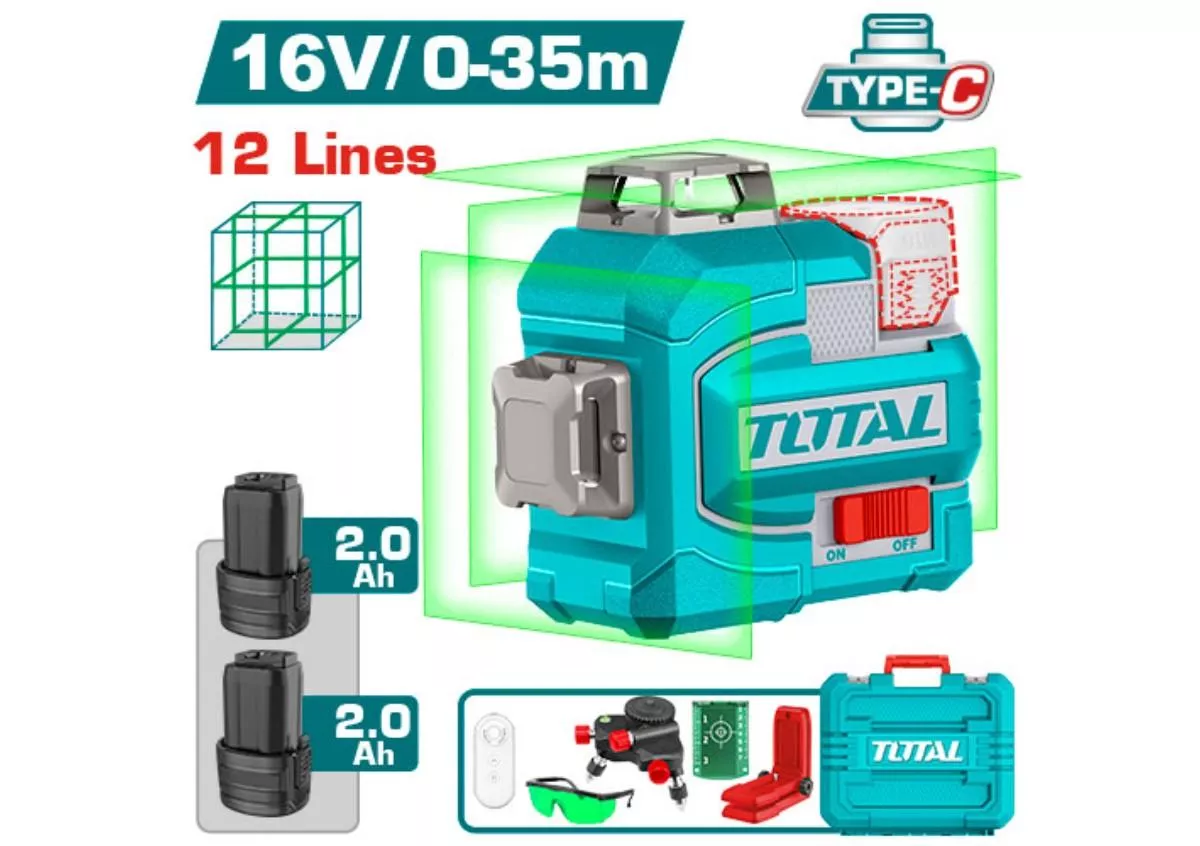

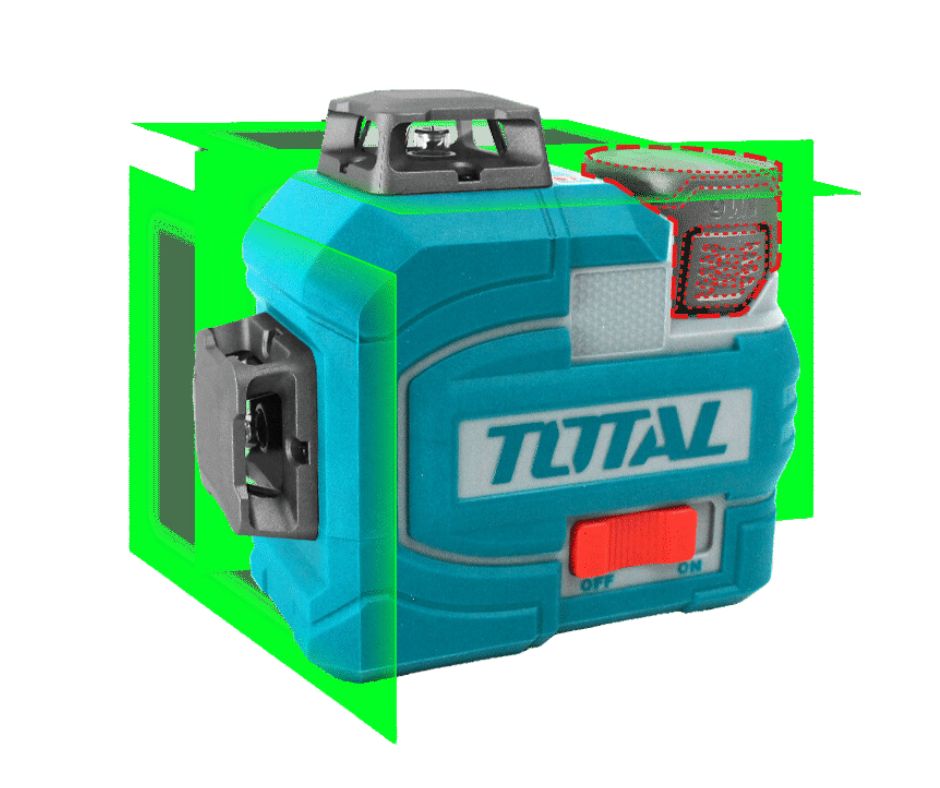

TOTAL TLL301205 is a professional 16V cordless 3D laser level designed for heavy-duty structural alignment, spatial layout, drywall tracking, and floor-to-ceiling tiling. It projects three complete 360-degree laser planes (12 lines in total) using high-intensity green laser beams.
| Technical Specification | Detail |
| Model | TLL301205 |
| Voltage | 16V Lithium-Ion (2.0Ah battery included) |
| Working Range | 0 – 35 m (up to 60 m with optional receiver) |
| Laser Diode / Beam Color | High-intensity Green Beam (515–520 nm), Class II |
| Laser Configuration | 12 Lines (3 x 360° planes: 1 Horizontal, 2 Vertical) |
| Leveling Accuracy | ± 1.5 mm at 7 m |
| Self-Leveling Range | ≤ 4° |
| Leveling Time | < 3 seconds |
| Base / Mount Thread | 1/4″ & 5/8″ dual thread mount |
| Included Accessories | 16V 2.0Ah Li-ion battery, charger, magnetic wall bracket, target plate, safety glasses |
| Packaging | Blow-molded heavy-duty carrying case |
Key Features:
-
3x 360° Layout Coverage: Projects one horizontal and two vertical 360° laser rings, establishing instantaneous 90° plumb and level reference lines on four walls, floor, and ceiling simultaneously.
-
Ultra-Bright Green Lasers: Green diodes maintain crisp visibility across wide indoor spaces and harsh lighting conditions where red lasers fade out.
-
Heavy-Duty IP-Rated Housing: Built with a rugged rubberized casing to withstand dust, splash water, and accidental job site drops.
-
Integrated Magnetic Wall Bracket: Enables quick positioning onto steel studs, drop-ceiling tracks, or standard laser tripods (like the TLLT01152).
| Weight | 5 kg |
|---|
