Total TLL301201 Cordless 3D laser level 16V 0~35 m
KSh 22,999.00
Cordless 3D laser
level
Green laser level
Voltage: 16V
Working range: 0~35 m
Self-levelling angle: ≤4°
Laser class II: <1mW
1 Pcs 360° horizontal and 2 pcs 360°
vertical laser line
Operating temperature: 0~+40℃
Storage temperature: -10~+50℃
Include:
1 Pcs magnetic liftable rotating stand
1 Pcs rotary base with 3 pcs adjustable
feet
1 Pcs laser target plate
1 Pcs glasses

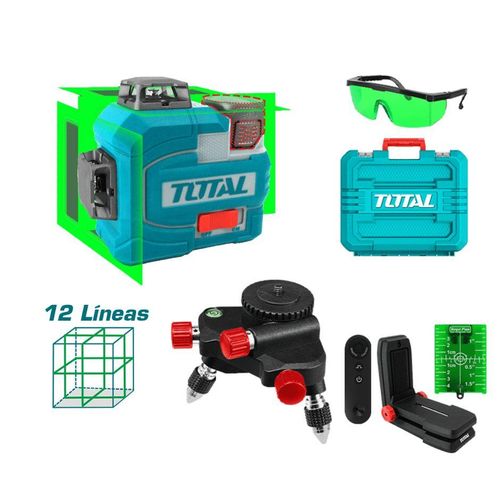

TOTAL TLL301201 is a high-precision 12-line 3D green laser level powered by a 16V Li-ion battery system. It projects three full 360° laser planes (one horizontal and two vertical) for full-room alignment, framing, ceiling grid installation, and wall tiling over distances up to 35 meters.
| Technical Specification | Detail |
| Model | TLL301201 |
| Voltage System | 16V Lithium-Ion (2.0Ah TFBLI1620 battery included) |
| Working Range | 0 – 35 m |
| Laser Diode / Beam Color | High-visibility Green Beam, Class II (<1mW) |
| Laser Configuration | 12 Lines (1 x 360° Horizontal / 2 x 360° Vertical planes) |
| Leveling Accuracy | ± 1.5 mm at 7 m |
| Self-Leveling Range | ≤ 4° |
| Operating Temperature | 0°C to +40°C |
| Charger | 16V Fast Charger (TFCLI1613, 220–240V~50/60Hz) |
| Included Accessories | Remote control, magnetic rotating bracket, micro-adjust rotary base, target plate, safety glasses, battery & charger |
| Packaging | Heavy-duty blow-molded plastic carrying case |
Key Features:
-
Green Beam Technology: Delivers up to 4x better visibility than standard red lasers, making it ideal for large indoor spaces and bright job site conditions.
-
Complete 3D 360° Coverage: Simultaneous horizontal and dual-vertical laser planes generate 90° reference intersections across floors, walls, and ceilings simultaneously.
-
Wireless Remote Control: Allows users to toggle individual laser lines on/off from across the room without touching or disturbing the calibrated setup.
-
Versatile Mounting Base: Supplied with a magnetic liftable rotating stand and a 3-foot fine-adjustment rotary base for floor leveling and wall mounting flexibility.
| Weight | 10 kg |
|---|
